LV Switchboards

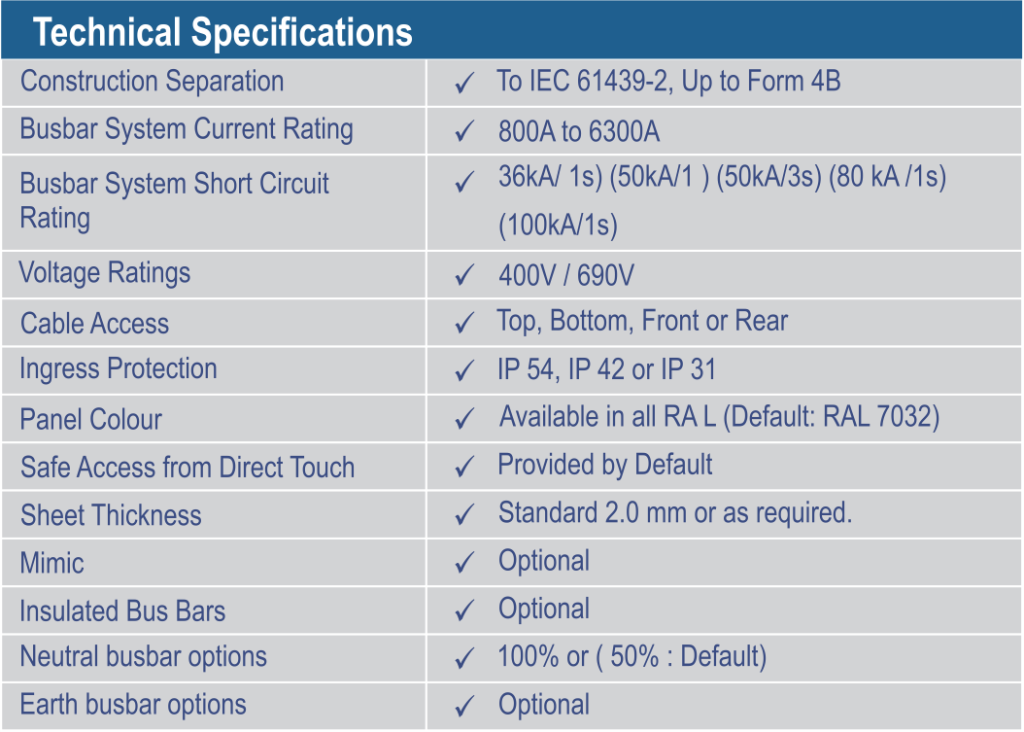

USC LV switchboards are constructed from IEC 60439 and IEC 61439 compliant switchgear system in producing quality LV switchgear.USC built switchboards are class leading in terms of technical performance, versatility of design and whole life operational costs. We offer front or rear ac cess busbar systems, Routine tested naturally cooled ACB cubicles to 6300A and construction to Form 48 with front or rear cable access options available.

  •  Short circuit withstands  strengths  and temperature  rise limitations inaccordance with IEC-61439 standards.
  •  Topor bottom mountingmainbusbar system
  •  Front or rear access busbar systems, suitable for thermo graphic imaging

Easily accessed  front  or  rear  mounting secondary  branchinsulated busbar systems available (Non-Standard Feature) 100% or 50% neutral busbar optionsAccommodati on of fixed or withdraw able ACB’s,MCCB’s, fuse­ switches and integrated PFCTop, Bottom, Frontor Rear cable access
